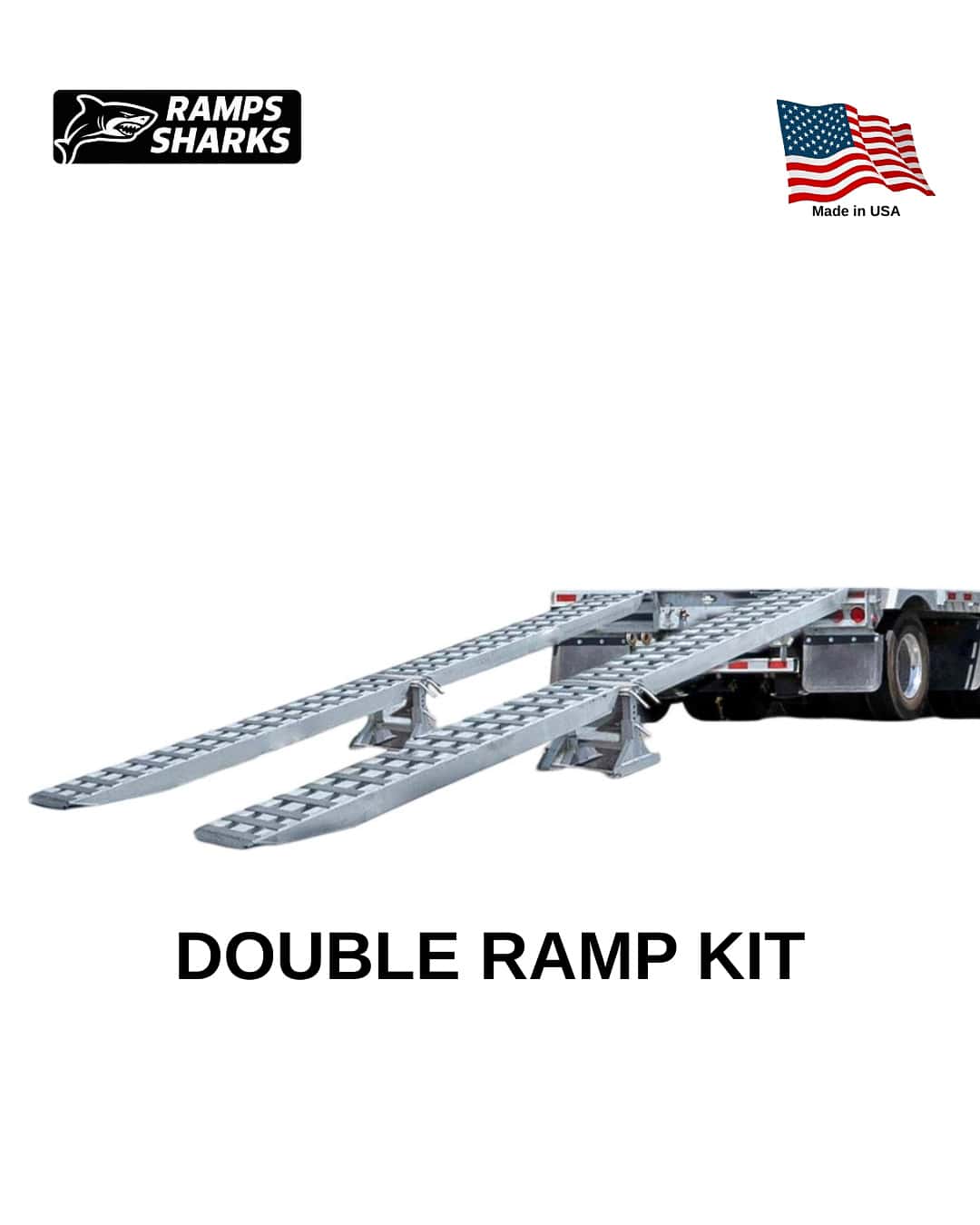

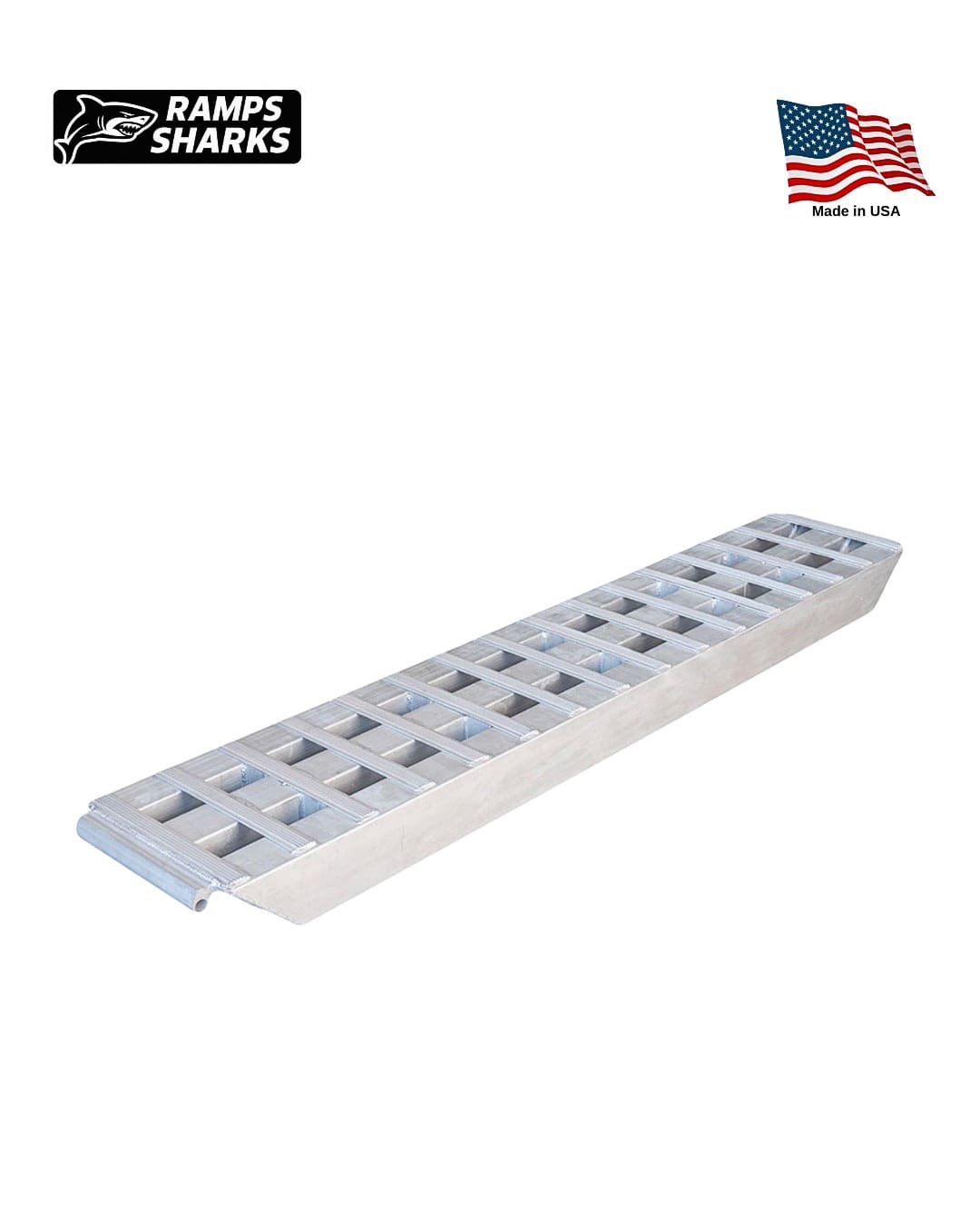

Professional heavy-duty aluminum double loading ramp kit engineered for demanding commercial loading operations. This complete system includes upper and lower ramps, skid seats, and adjustable support stands to ensure safe, stable, and efficient equipment loading on trailers and flatbeds.

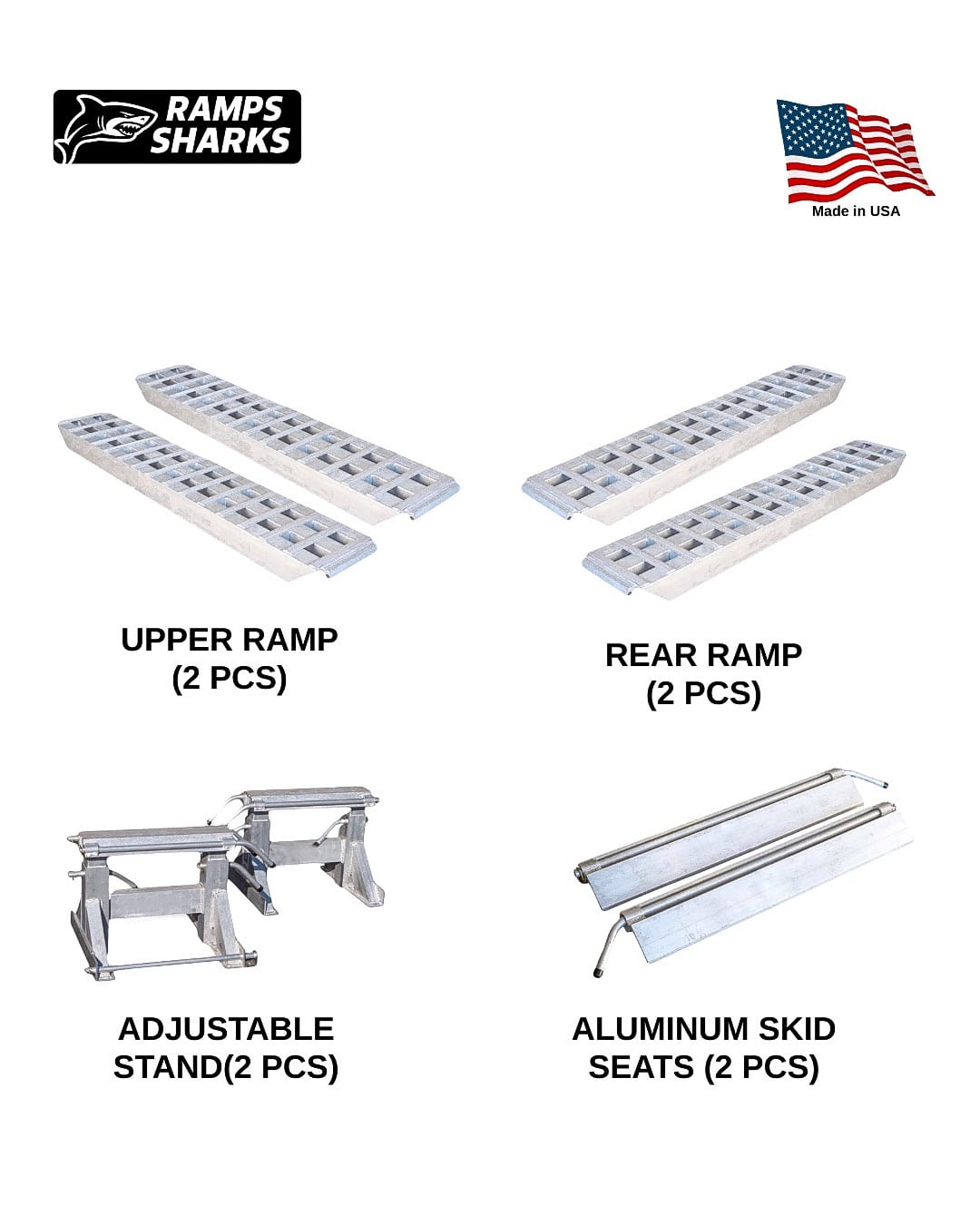

What’s Included
2 pcs aluminum lower ramps 18 in x 96 in x 6 in
2 pcs aluminum upper ramps 18 in x 96 in x 6 in
2 pcs aluminum skid seats 36 in

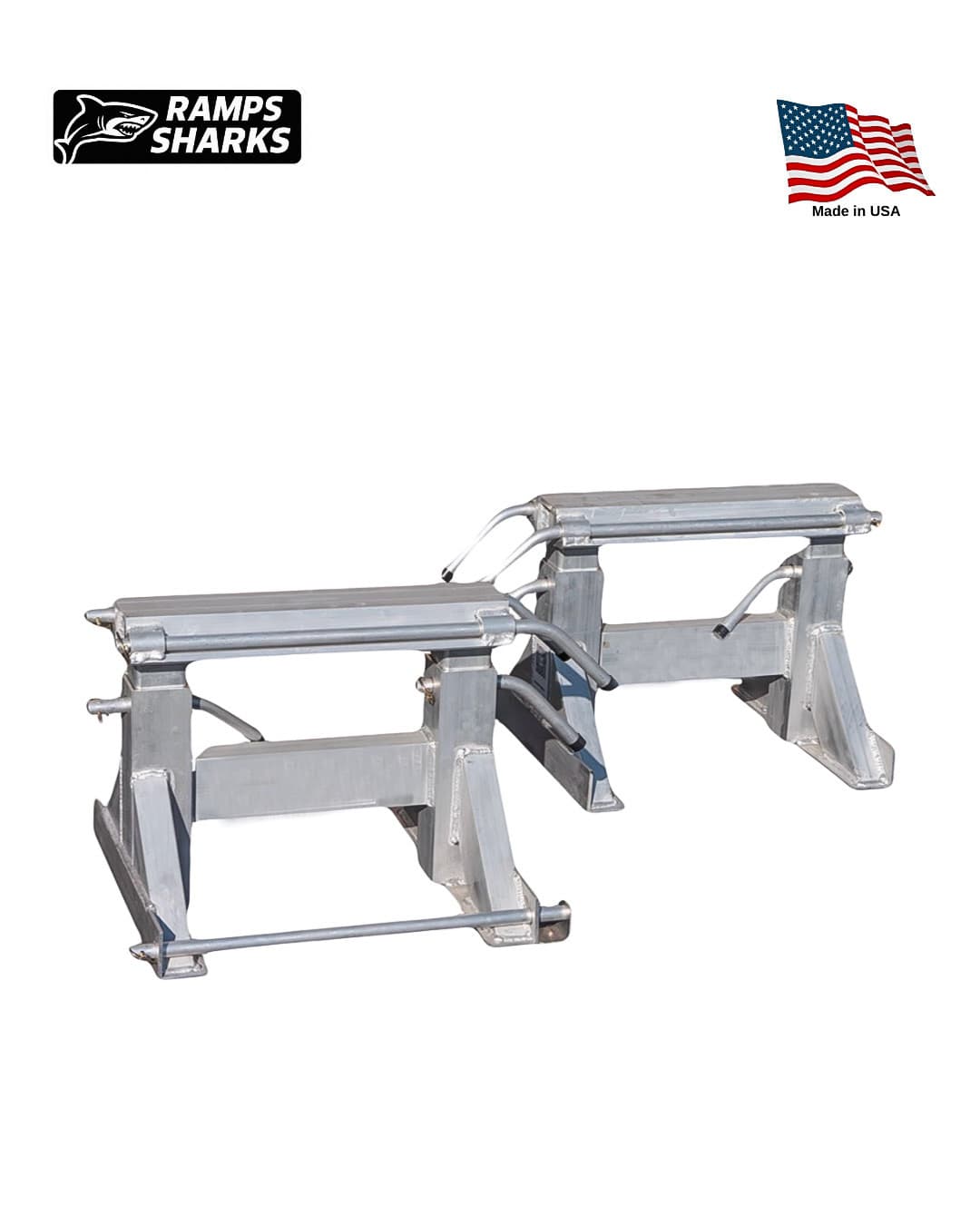

2 pcs adjustable heavy duty ramp support stands 18 in to 24 in
Important Notes
Mounting hardware is not included
Installation can be bolted on or welded based on customer preference
Professional installation is recommended
Never exceed the rated working load limit
Specifications
Material Aluminum
Ramp Width 18 in
Total System Length 16 ft
Ramp Thickness 6 in
Working Load Limit 23500 lbs per axle
Installation Type Bolt on or weld on
Color Silver
Total System Weight 526.72 lbs
Type Double Ramp Kit
Key Features
Double ramp configuration for extended loading height

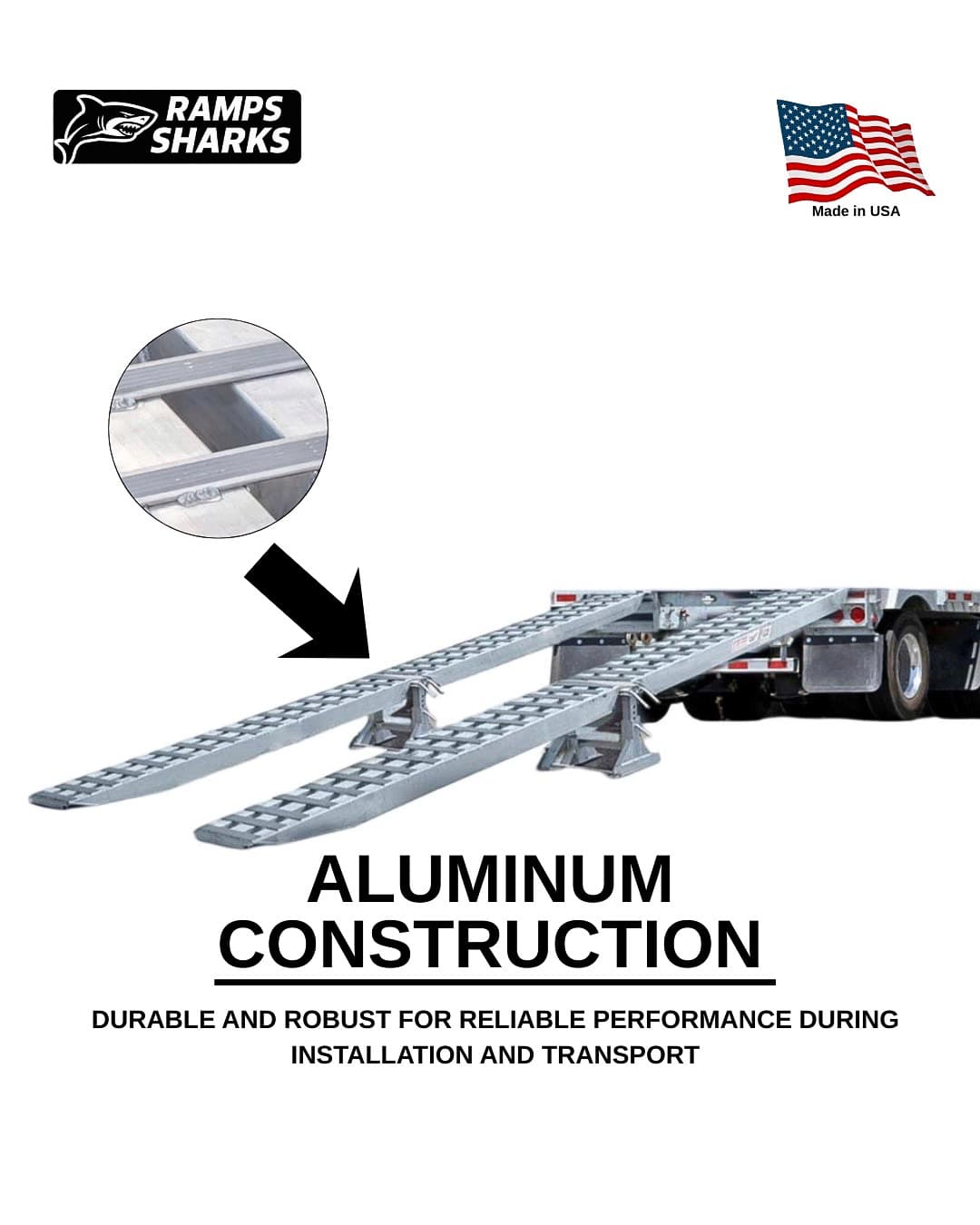

High strength lightweight aluminum construction

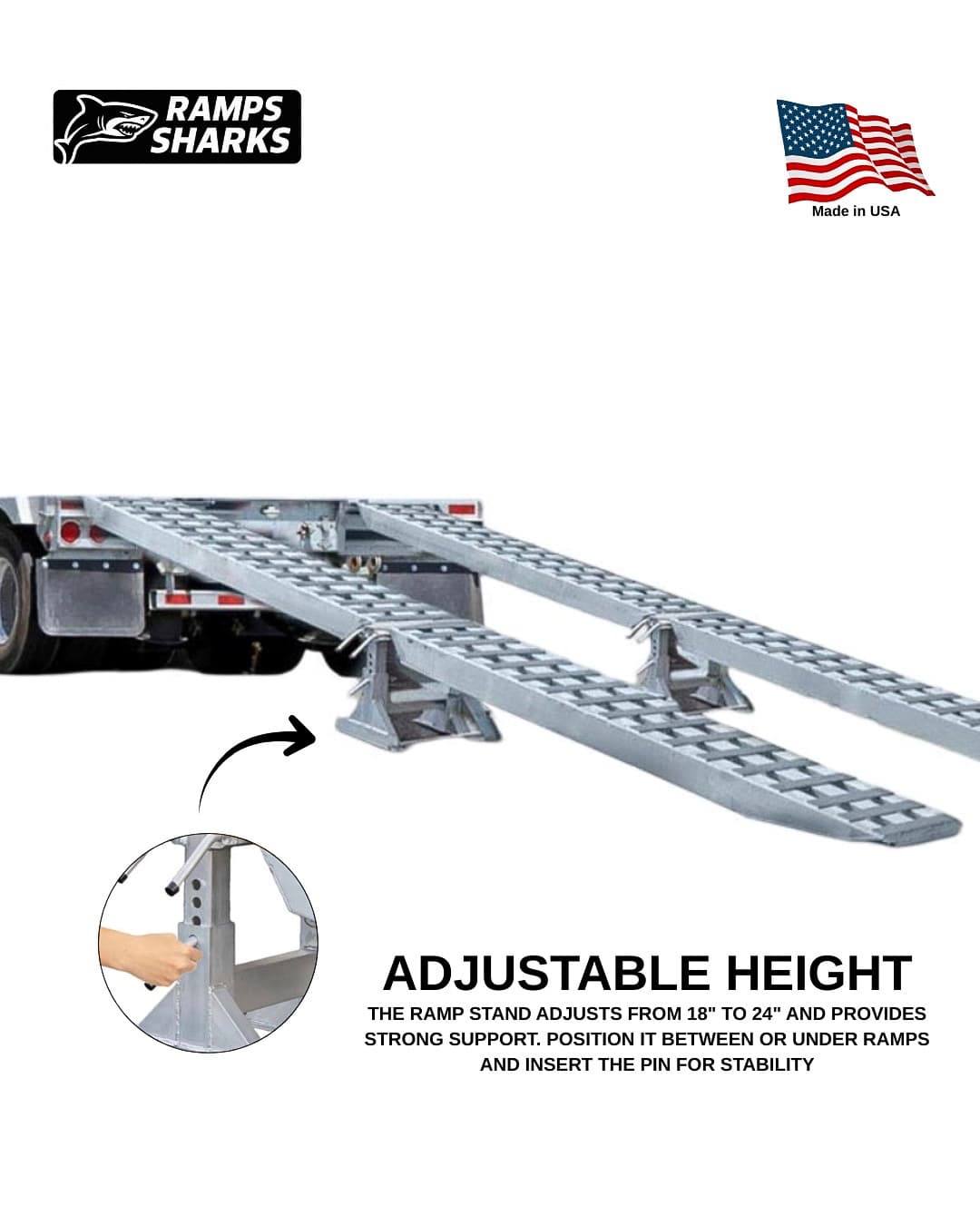

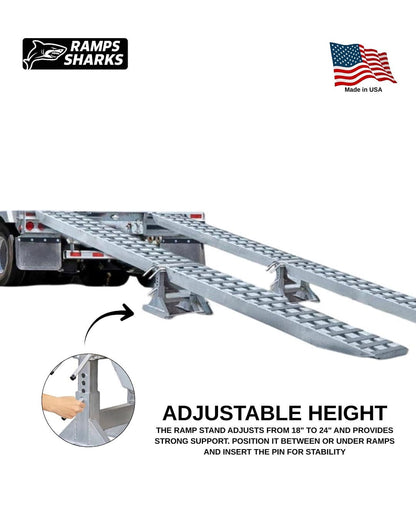

Adjustable support stands for added stability
Corrosion resistant for long term use
Modular design allows easy replacement of individual components
Compatible with trailer and flatbed loading applications

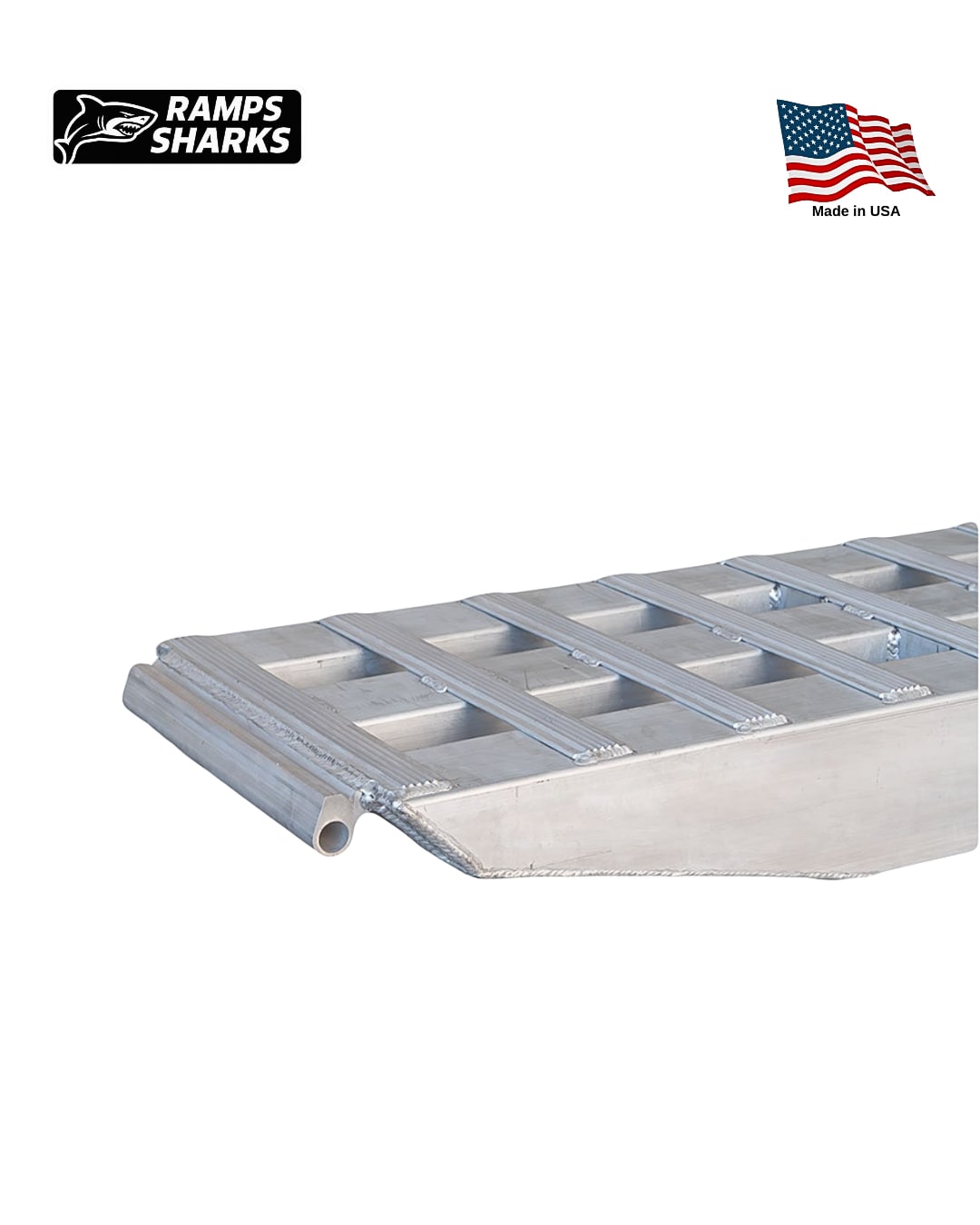

Lower Ramp Details
Each lower ramp rated at 23500 lbs per axle
Ramp size 18 in width x 96 in length x 6 in thickness
Pin on ends provide a secure trailer connection
Designed for smooth and controlled loading
Upper Ramp Details
Each upper ramp rated at 23500 lbs per axle
Ramp size 18 in width x 96 in length x 6 in thickness
Pin on ends ensure secure mounting to the trailer
Provides added height for double deck loading

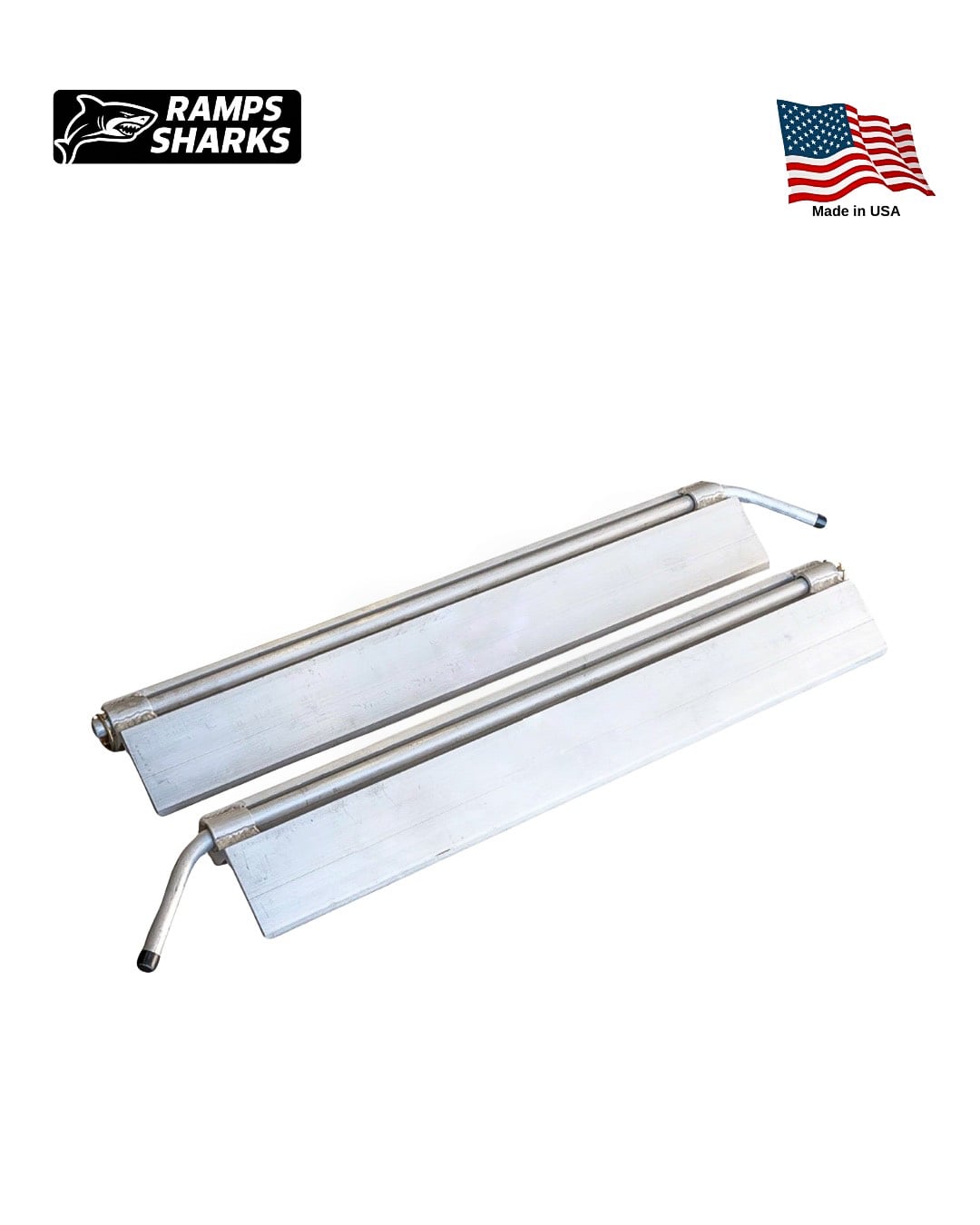

Skid Seat Details
2 pcs 36 in aluminum skid seats
Equipped with locking rods and standard hitch pins
Designed to enhance ramp stability and safety
Compatible with upper and lower trailer decks
Can be bolted on or welded for maximum strength
