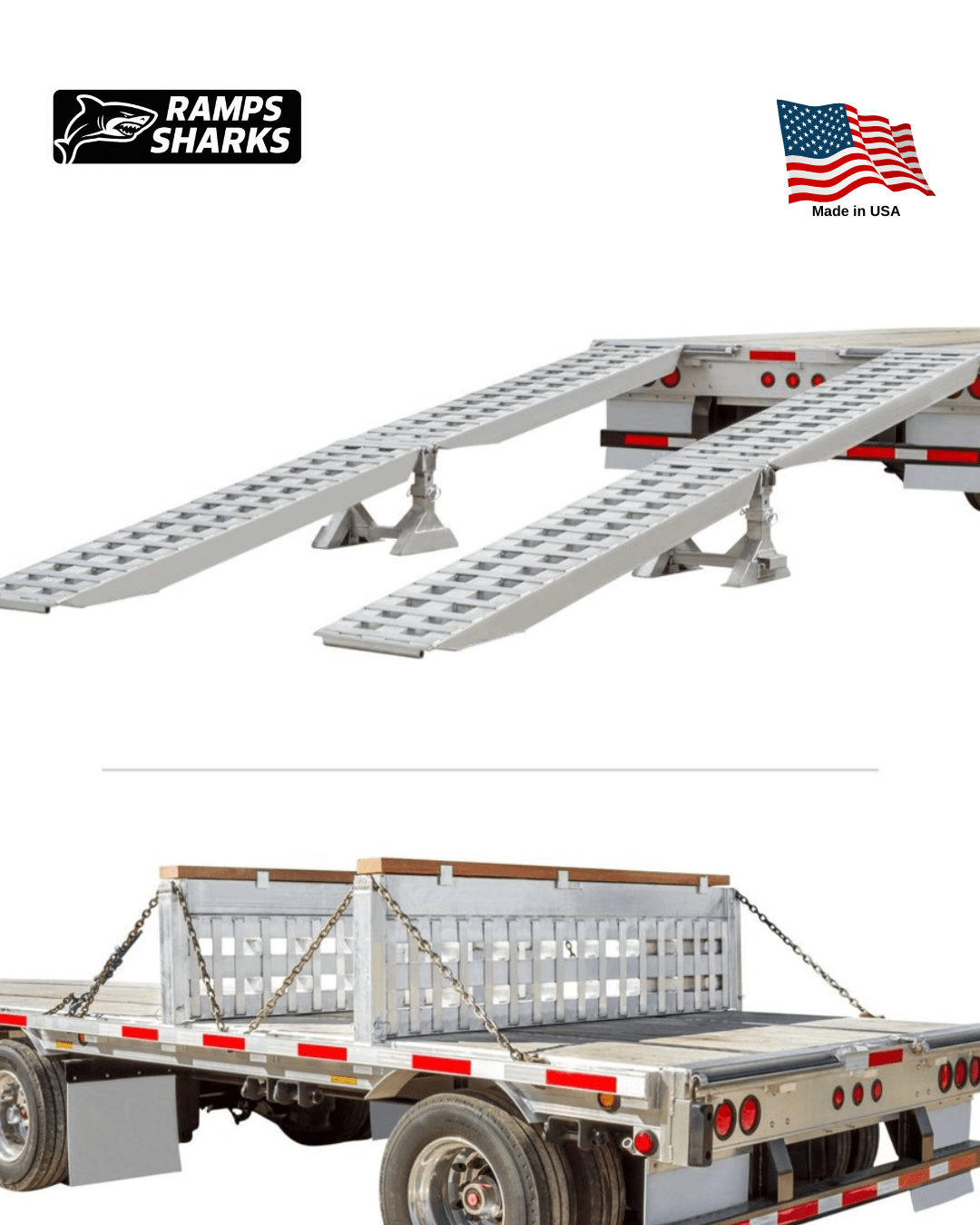

Professional aluminum load leveler and ramp system designed for step deck trailers with a 24-inch upper deck height. This modular setup converts ramps into stable load levelers to maximize loading capability, safety, and efficiency for heavy equipment transport.

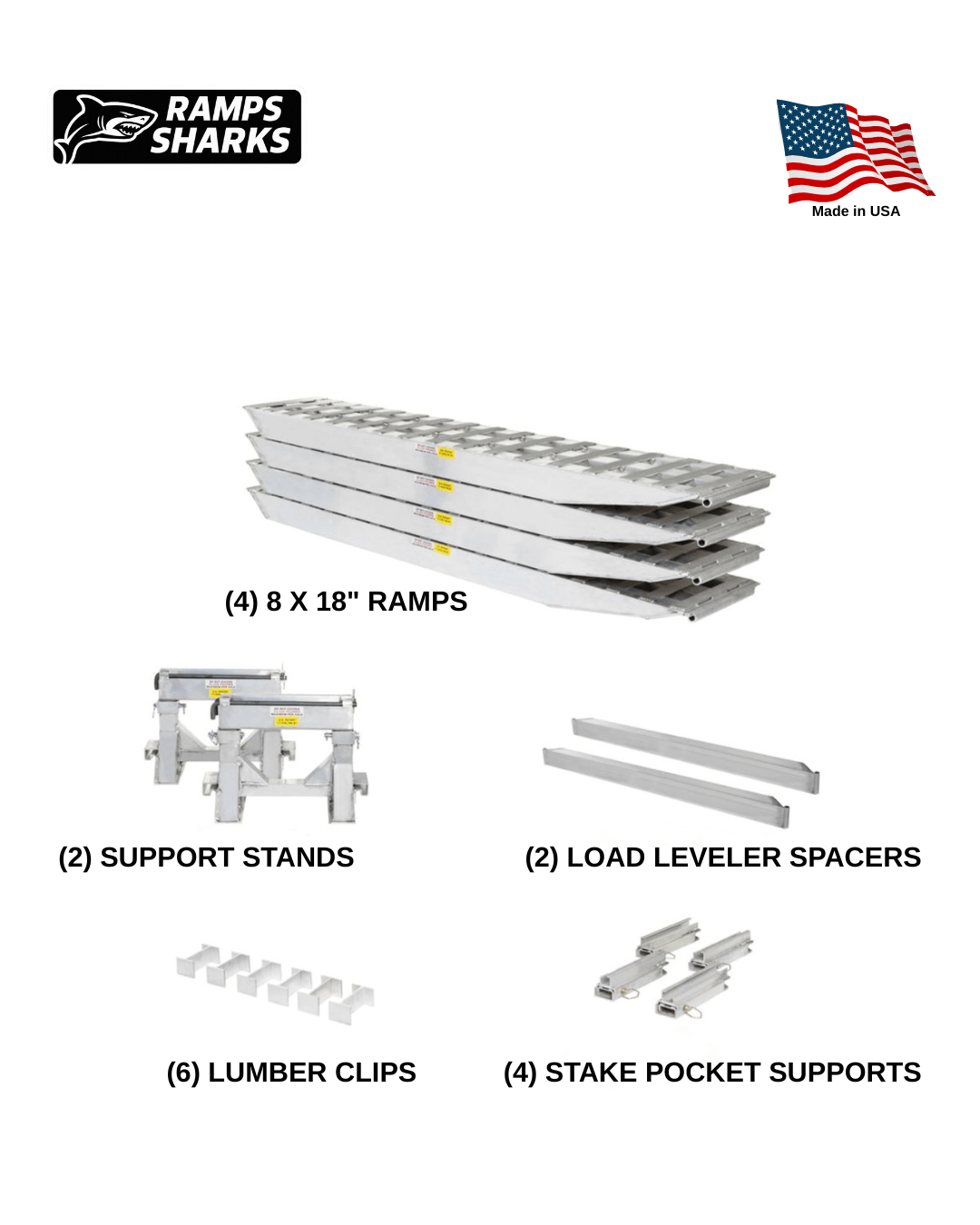

What’s Included
4 pcs aluminum ramps 8 ft x 18 in x 5 in with pin on ends
4 pcs stake pocket supports for load levelers
6 pcs lumber securing clips
2 pcs load leveler spacers
2 pcs adjustable ramp support stands
Specifications
Made in USA
Material High strength lightweight aluminum
System Type 2 bunk load leveler with 4 ramps
Maximum Capacity 23500 lbs per axle
Ramp Length 8 ft
Ramp Width 18 in
Ramp Height 5 in
Overall System Length 16 ft
Total Weight 572 lbs
Surface Type Rung high traction
Key Features

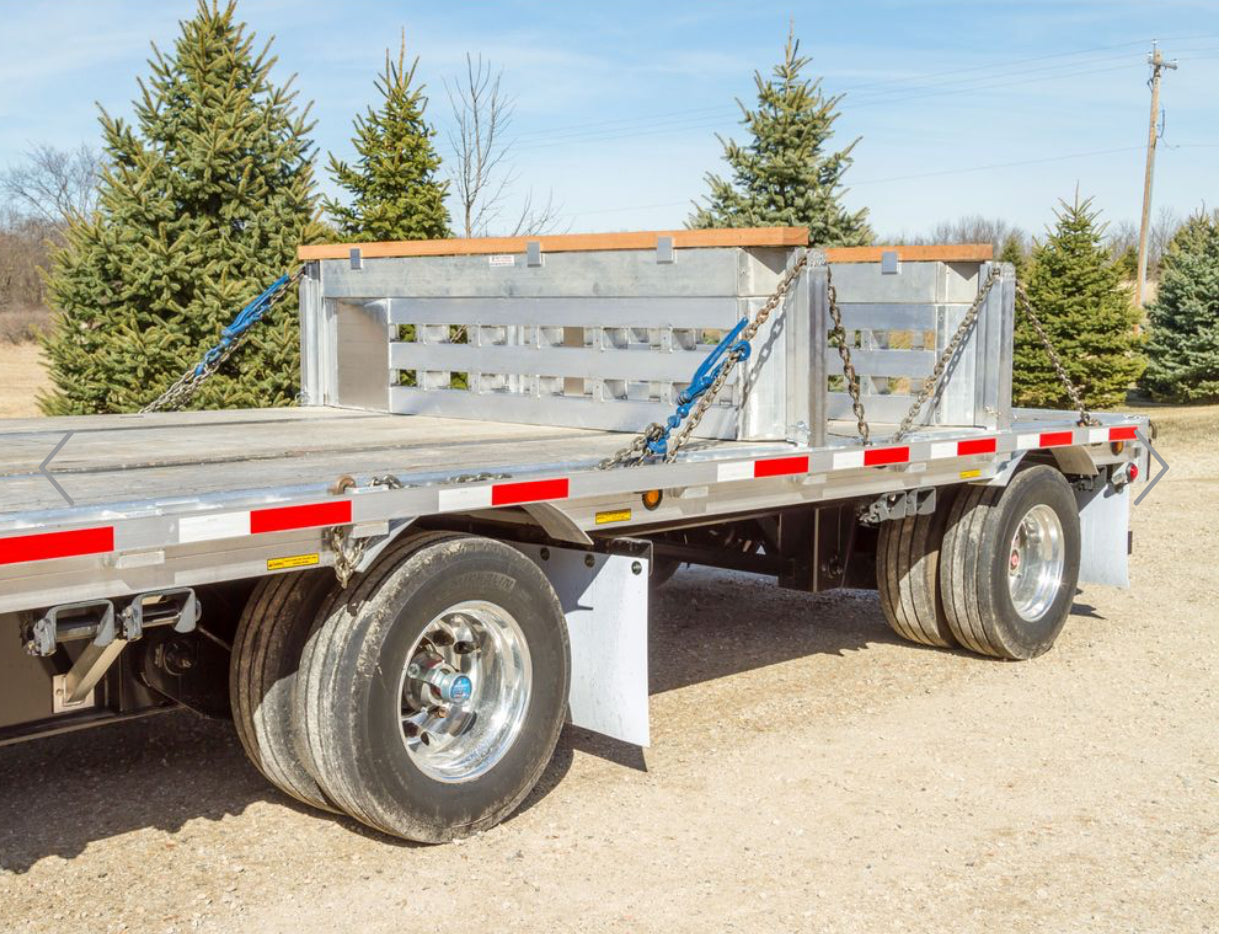

Converts ramps into full load levelers for step deck trailers
Designed specifically for 24 in step deck height
Fits 102 in wide step deck trailers
High traction rung surface for all weather conditions
Lightweight design for easy handling
No single component weighs more than 94 lbs
Stake pocket mounting system prevents ramp kick out
Modular system allows easy part replacement and future expansion
